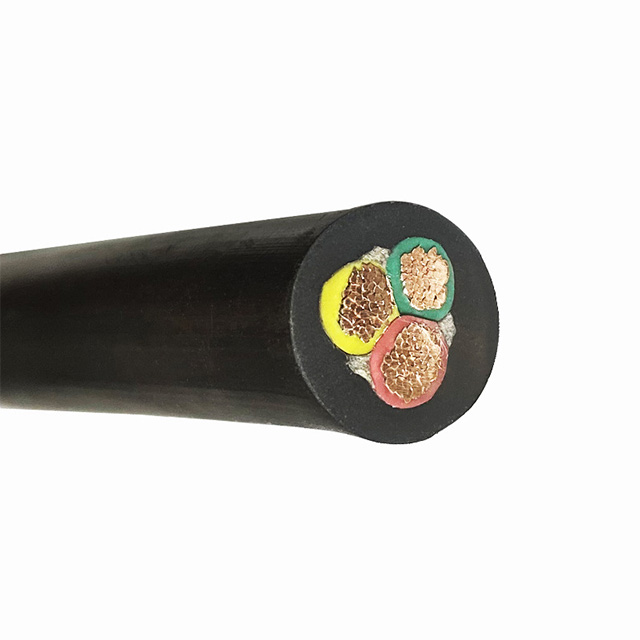

Submersible Pump Cables Round PVC/Rubber Insulated Cable
Application
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs. Double sheathed round pump cables are better suited for heavy duty application like sewage, slurry and dewatering pumps. These conditions requires the sheathing to be able to with stand abrasion, prevent ingress of water along the interstices of the cable and be resistant to acidic fluids and chemicals.
Constrution
Characteristics
Rated Voltage: 300/500V,450/750V,600/1000V
Test Voltage: 1.5KV,2.5KV,3.5KV
Type: Flat /Round
Conductor Working temperature: 85°C
Insulated: EPR/PVC/Rubber.
Ambient temperature: Fixed:-40°C to 90°C; Mobile:-25°C to 90°C
Flame retardant: VDE 0482-332-1-2/IEC 60332-1
Parameters
|
3CORE ROUND SUBMERSIBLE PUMPS CABLES |
|||||||
|
CONDUCTOR |
RUBBER INSULATION |
TOTAL THICKNESS OF DOUBLE RUBBER SHEATH |
Conductor Resistance at 20°C (max) ohms/km |
CURRENT Rating at 40°C Amps. |
|||
|
Nominal Area in |
Nos. & Dia.of wire |
Nominal Thickness |
Nominal Core Dia. |
Nominal Thickness |
Approx. Overall Dimensions |
||
|
Sq. mm. |
Nos. / mm |
mm |
mm |
mm |
mm |
||
|
1.5 |
22/0.30 |
0.8 |
3.25 |
1.5 |
10 |
12.1 |
14 |
|
2.5 |
36/0.30 |
0.9 |
3.84 |
1.5 |
11 |
7.41 |
18 |
|
4 |
56/0.30 |
1 |
4.5 |
1.6 |
13 |
4.95 |
26 |
|
6 |
85/0.30 |
1 |
5.3 |
1.6 |
14.6 |
3.3 |
31 |
|
10 |
140/0.30 |
1 |
6.5 |
2 |
18 |
1.91 |
42 |
|
16 |
226/0.30 |
1 |
8 |
2 |
21.2 |
1.21 |
57 |
|
25 |
354/0.30 |
1.2 |
10.1 |
2.15 |
26 |
0.78 |
72 |
|
35 |
495/0.30 |
1.2 |
11.3 |
2.15 |
28.3 |
0.554 |
90 |
|
50 |
703/0.30 |
1.4 |
13.6 |
2.25 |
33.5 |
0.386 |
115 |
|
70 |
440/0.45 |
1.4 |
15.3 |
2.45 |
37.8 |
0.272 |
143 |
|
95 |
475/0.50 |
1.6 |
18 |
2.4 |
43.5 |
0.206 |
165 |
|
4CORE ROUND SUBMERSIBLE PUMPS CABLES |
|||||||
|
CONDUCTOR |
PVC INSULATION |
TOTAL THICKNESS OF DOUBLE PVC SHEATH |
Conductor Resistance at 20°C (max) ohms/km |
CURRENT Rating at 40°C Amps. |
|||
|
Nominal Area in |
Nos. Dia.of wire |
Nominal Thickness |
Nominal Core Dia. |
Nominal Thickness |
Approx. Overall Dimensions |
||
|
Sq. mm |
Nos. / mm |
mm |
mm |
mm |
mm |
||
|
1.5 |
22/0.30 |
0.8 |
3.25 |
1.5 |
10.8 |
12.1 |
14 |
|
2.5 |
36/0.30 |
0.9 |
3.84 |
1.65 |
12.5 |
7.41 |
18 |
|
4 |
56/0.30 |
1 |
4.5 |
1.65 |
14.1 |
4.95 |
26 |
|
6 |
85/0.30 |
1 |
5.3 |
1.65 |
16 |
3.3 |
31 |
|
10 |
140/0.30 |
1 |
6.5 |
2 |
20.35 |
1.91 |
42 |
|
16 |
226/0.30 |
1 |
8 |
2 |
23.4 |
1.21 |
57 |
|
25 |
354/0.30 |
1.2 |
>10.10 |
2.2 |
28.8 |
0.78 |
72 |
|
35 |
495/0.30 |
1.2 |
11.5 |
2.2 |
31.5 |
0.554 |
90 |
|
50 |
703/0.30 |
1.4 |
13.6 |
2.3 |
37.3 |
0.386 |
115 |
|
70 |
440/0.30 |
1.4 |
15.3 |
2.6 |
42.2 |
0.272 |
143 |
|
95 |
475/0.50 |
1.6 |
18 |
2.65 |
48.8 |
0.206 |
165 |
