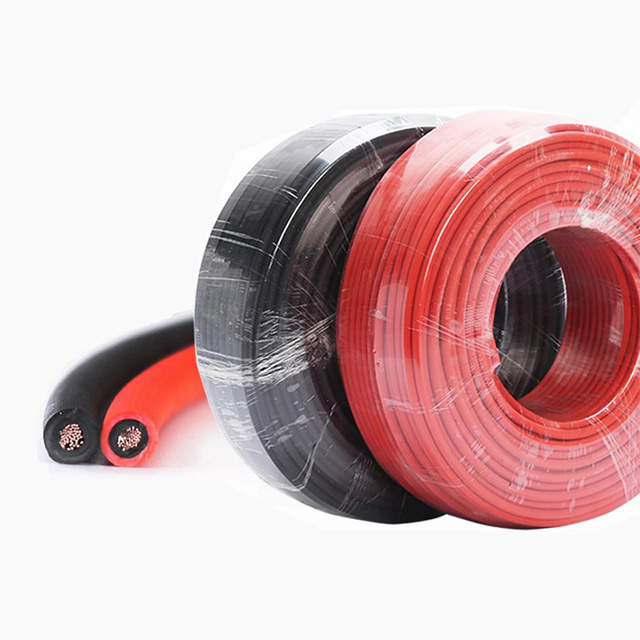

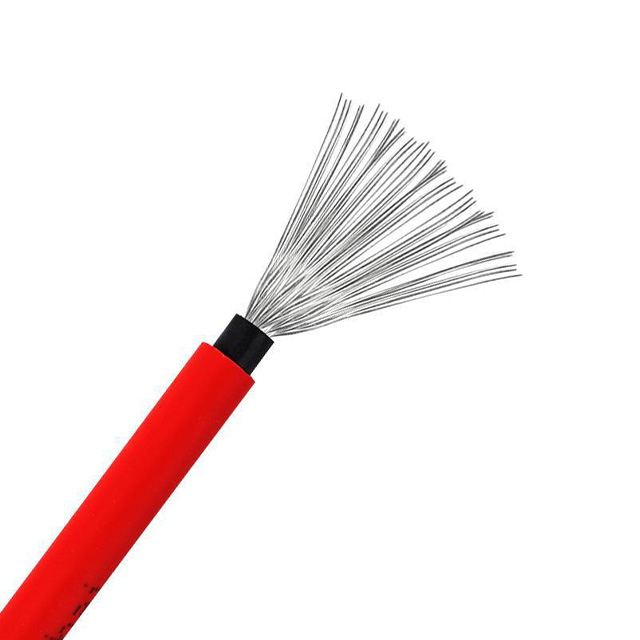

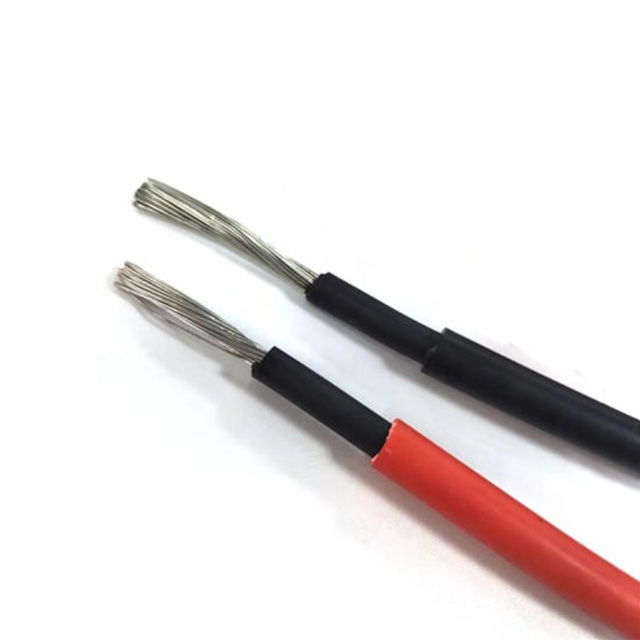

10 awg 12 awg Solar Wire Cable
Application
Solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal andexternal, within conduit or systems. lmpact tested - Suitable for direct burial For instalations where fire. smoke emissions and toxic fumes create a potential risk to life and equipment.
Constrution
Characteristics
| Rated voltage | DC 1500V / AC 1000V |
| Temperature Rating | -40°C to +90°C |
| Maximum Permitted DC Voltage | 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load) |
| Insulation Resistance | 1000 MΩ/km |
| Spark Test | 6000 Vac (8400 Vdc) |
| Test voltage | AC 6.5kv 50Hz 5min |
Standards
Adapted to PV systems, 2 Pfg 1169 / 08.2007 and UL.
Parameters
| Construction | Conductor Construction | Conductor | Outer | Resistance Max | Current Carring Capacity |
|---|---|---|---|---|---|
| n×mm2 | n×mm | mm | mm | Ω/Km | A |
| 1×1.5 | 30×0.25 | 1.58 | 4.90 | 13.3 | 30 |
| 1×2.5 | 50×0.256 | 2.06 | 5.45 | 7.98 | 41 |
| 1×4.0 | 56×0.3 | 2.58 | 6.15 | 4.75 | 55 |
| 1×6 | 84×0.3 | 3.15 | 7.15 | 3.39 | 70 |
| 1×10 | 142×0.3 | 4.0 | 9.05 | 1.95 | 98 |
| 1×16 | 228×0.3 | 5.7 | 10.2 | 1.24 | 132 |
| 1×25 | 361×0.3 | 6.8 | 12.0 | 0.795 | 176 |
| 1×35 | 494×0.3 | 8.8 | 13.8 | 0.565 | 218 |
| 1×50 | 418×0.39 | 10.0 | 16.0 | 0.393 | 280 |
| 1×70 | 589×0.39 | 11.8 | 18.4 | 0.277 | 350 |
| 1×95 | 798×0.39 | 13.8 | 21.3 | 0.210 | 410 |
| 1×120 | 1007×0.39 | 15.6 | 21.6 | 0.164 | 480 |
