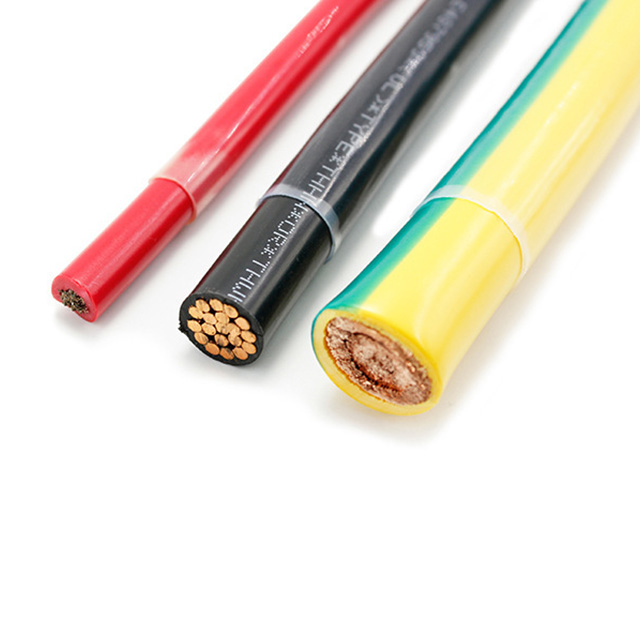

THHN/THWN/THWN-2 Wire
Application
General use in commercial and industrial construction, and installations where resistance against oils and gasoline is required.May be used for power and control circuits in recognized raceways.in wet or dry locations, and in presence of gases, gasoline and chemicals. Also suitable as machine tool and switchboard wiring
Constrution

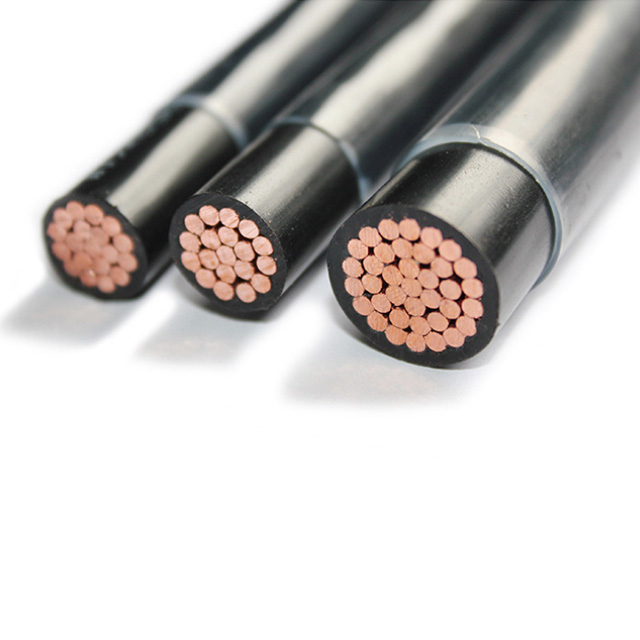

Conductor: Bare, soft annealed stranded copper
Insulation: PVC (Polyvinyl-Chloride)
Coating: Nylon

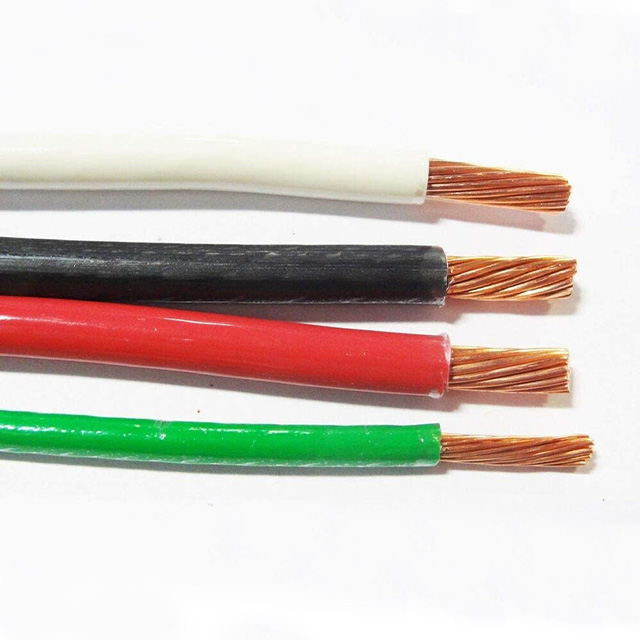

Colours: Black, Blue, Green, Brown, Red, Orange, Yellow, Gray, White, Pink, Tan; Striping and Other colors available upon request.
Characteristics
Voltage: 600v
Max conductor temperature: Oil: 75°C, Wet 75°C, Dry 90°C
Standards
UL83: Standard for requirements for 600V, single condutor thermoplastic-insulated wire and cables.
Parameters
|
Section (AWG or MCM) |
Number of strands (Nos) |
Insulation thickness (mils) |
Jacket thickness Min. (mils) |
Approx.Nominal OD (inch) |
|
14 |
Solid or 7 |
15 |
4 |
0.86 |
|
12 |
Solid or 7 |
15 |
4 |
1 |
|
10 |
Solid or 7 |
20 |
4 |
1.27 |
|
8 |
7 or 19 |
30 |
5 |
1.67 |
|
6 |
7 or 19 |
30 |
5 |
1.97 |
|
4 |
7 or 19 |
40 |
6 |
2.51 |
|
2 |
7 or 19 |
40 |
6 |
2.97 |
|
1 |
7 or 19 |
50 |
7 |
3.45 |
|
1/0 |
19 |
50 |
7 |
3.76 |
|
2/0 |
19 |
50 |
7 |
4.12 |
|
3/0 |
19 |
50 |
7 |
4.52 |
|
4/0 |
19 |
50 |
7 |
4.97 |
|
250 |
19 |
60 |
8 |
5.5 |
|
350 |
37 |
60 |
8 |
6.32 |
|
400 |
37 |
60 |
8 |
6.68 |
|
450 |
37 |
60 |
8 |
7.03 |
|
500 |
37 |
60 |
8 |
7.34 |
|
750 |
61 |
70 |
9 |
8.95 |
