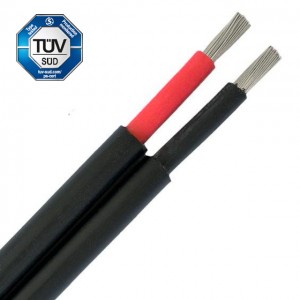

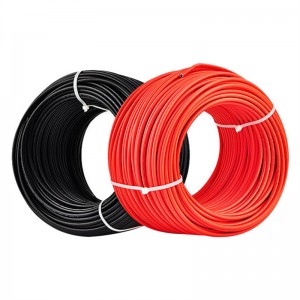

Solar Cable 6mm
Application

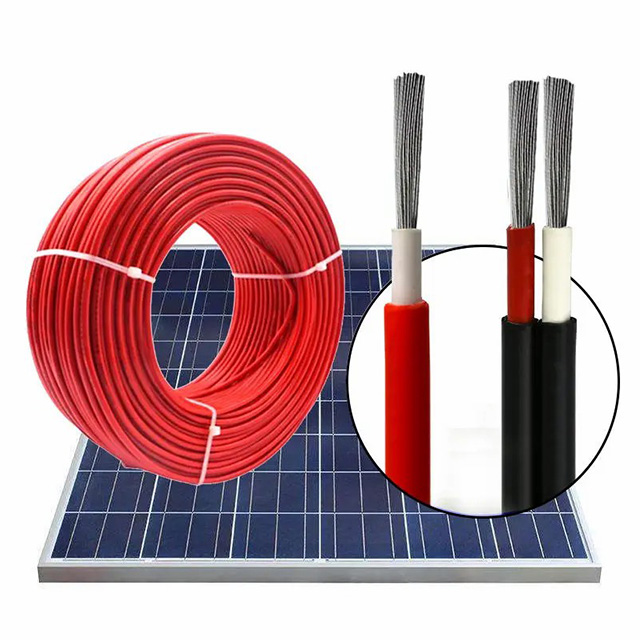

Solar cable 6mm is suitable for wiring and connecting solar panels and related components for power generation, especially suitable for outdoor use. Resistant to sunlight and aging, using low-smoke halogen-free flame retardant materials, higher grade and safer.

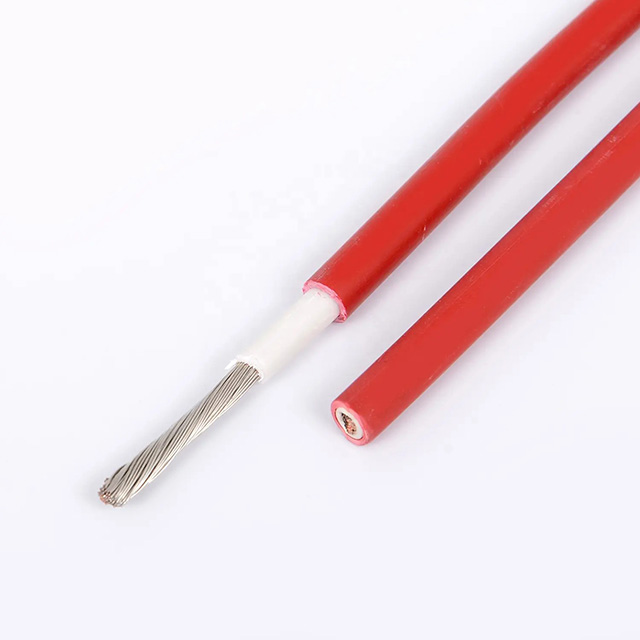

Constrution

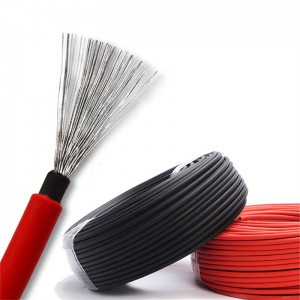

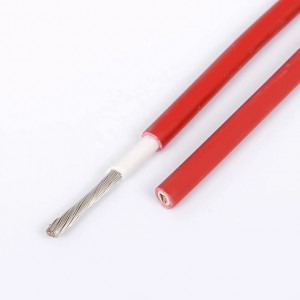

Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.

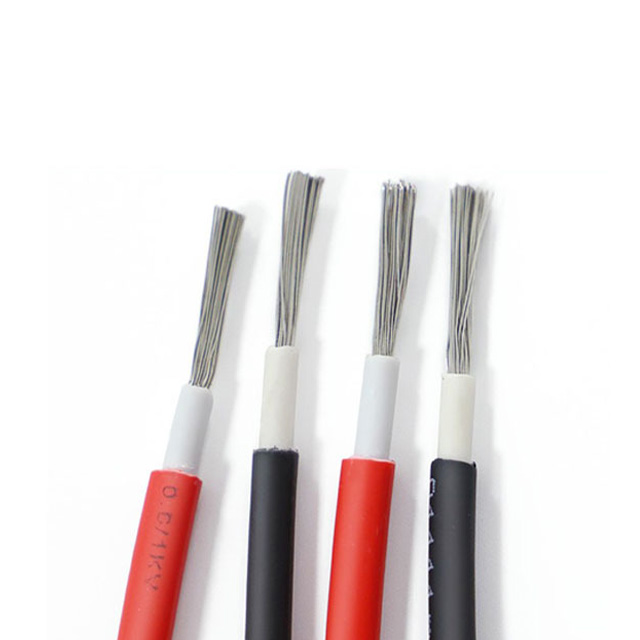

Core Identification : Red, black or natural Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.Cable
Colour : Black or Red
Characteristics
| Rated voltage | DC 1500V / AC 1000V |
| Temperature Rating | -40°C to +90°C |
| Maximum Permitted DC Voltage | 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load) |
| Insulation Resistance | 1000 MΩ/km |
| Spark Test | 6000 Vac (8400 Vdc) |
| Test voltage | AC 6.5kv 50Hz 5min |
Standards
Adapted to PV systems, 2 Pfg 1169 / 08.2007 and EN 50618:2015.
Parameters
| Construction | Conductor Construction | Conductor | Outer | Resistance Max | Current Carring Capacity |
|---|---|---|---|---|---|
| n×mm2 | n×mm | mm | mm | Ω/Km | A |
| 1×1.5 | 30×0.25 | 1.58 | 4.90 | 13.3 | 30 |
| 1×2.5 | 50×0.256 | 2.06 | 5.45 | 7.98 | 41 |
| 1×4.0 | 56×0.3 | 2.58 | 6.15 | 4.75 | 55 |
| 1×6 | 84×0.3 | 3.15 | 7.15 | 3.39 | 70 |
| 1×10 | 142×0.3 | 4.0 | 9.05 | 1.95 | 98 |
| 1×16 | 228×0.3 | 5.7 | 10.2 | 1.24 | 132 |
| 1×25 | 361×0.3 | 6.8 | 12.0 | 0.795 | 176 |
| 1×35 | 494×0.3 | 8.8 | 13.8 | 0.565 | 218 |
| 1×50 | 418×0.39 | 10.0 | 16.0 | 0.393 | 280 |
| 1×70 | 589×0.39 | 11.8 | 18.4 | 0.277 | 350 |
| 1×95 | 798×0.39 | 13.8 | 21.3 | 0.210 | 410 |
| 1×120 | 1007×0.39 | 15.6 | 21.6 | 0.164 | 480 |
FAQ
Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: How does your company do regarding Quality Control?
A: 1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.
