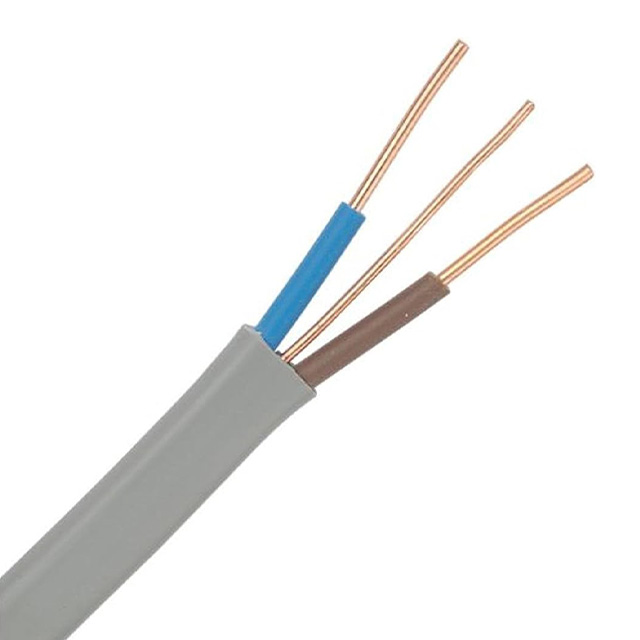

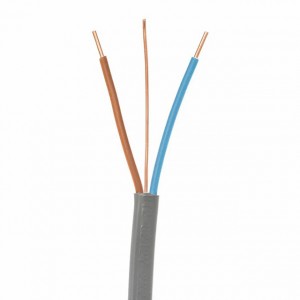

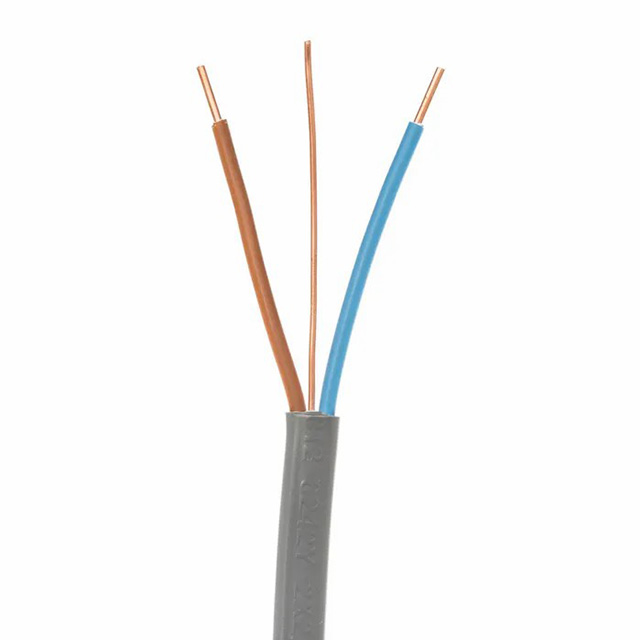

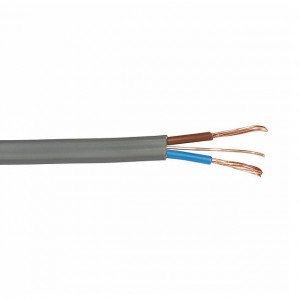

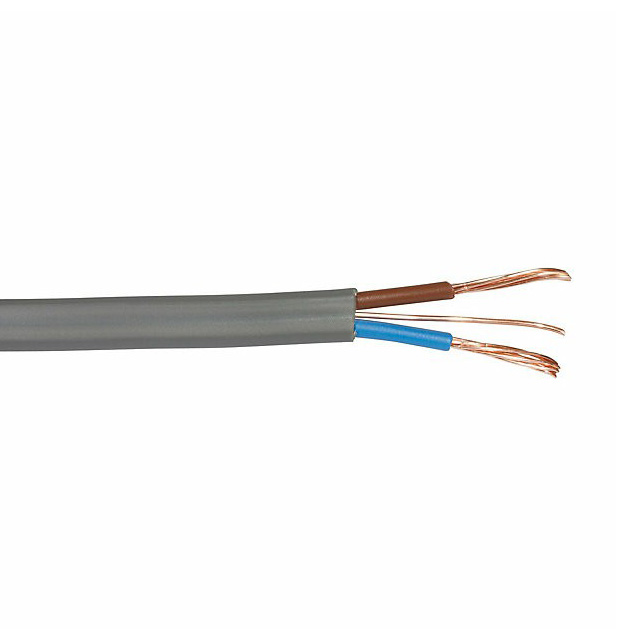

2.5mm 6242Y Flat Twin and Earth Cable
Application
These cables are suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. They should be laid in conduit or trunking where mechanical protection is required.
Constrution
Characteristics
- Working voltage: 300/500v
- Test voltage: 2000 volts
- Minimum bending radius: 4xOverall diameter
- Flexing temperature: -15º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩxkm
Standards
BS 6004
Parameters
| Nominal section(mm²) | Number of conductors | Toplimit of overall diameter(mm) | Maximum DC resistance(20℃)(Ω/km) | Minimum insulation resistance(70℃)(MΩ.km) |
| 2x0.75 | 1 | 4.6x7.1 | 24.5 | 0.012 |
| 2x1.0 | 1 | 4.8x7.4 | 18.1 | 0.011 |
| 2x1.5 | 1 | 5.3x8.5 | 12.1 | 0.011 |
| 2x2.5 | 1 | 6.2x10.1 | 7.41 | 0.010 |
| 2x4 | 1 | 6.7x11.1 | 4.61 | 0.0085 |
| 2x6 | 1 | 7.5x12.5 | 3.08 | 0.0070 |
| 2x10 | 2 | 9.5x16.2 | 1.83 | 0.0065 |
| 3x0.75 | 1 | 4.6x9.6 | 24.5 | 0.012 |
| 3x1.0 | 1 | 4.8x10.1 | 18.1 | 0.011 |
| 3x1.5 | 1 | 5.3x11.7 | 12.1 | 0.011 |
| 3x2.5 | 1 | 6.2x14.0 | 7.41 | 0.010 |
| 3x4 | 1 | 7.0x15.8 | 4.61 | 0.0085 |
| 3x6 | 1 | 7.5x17.5 | 3.08 | 0.0070 |
| 3x10 | 2 | 9.5x23.0 | 1.83 | 0.0065 |
