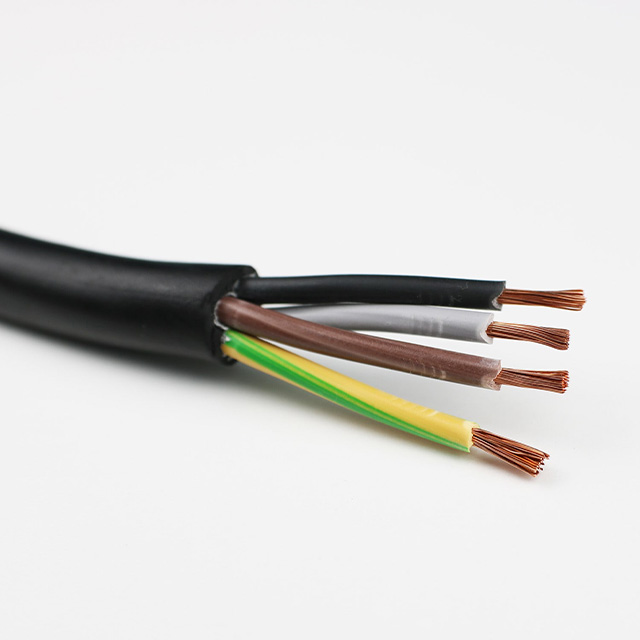

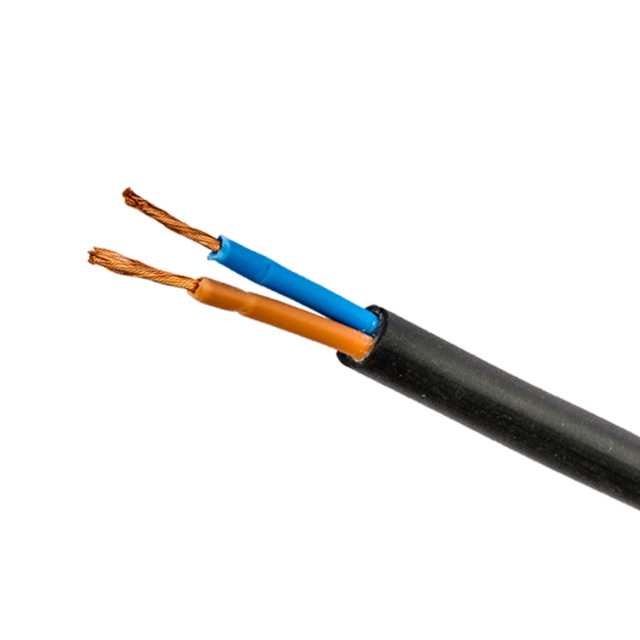

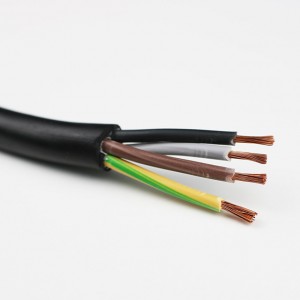

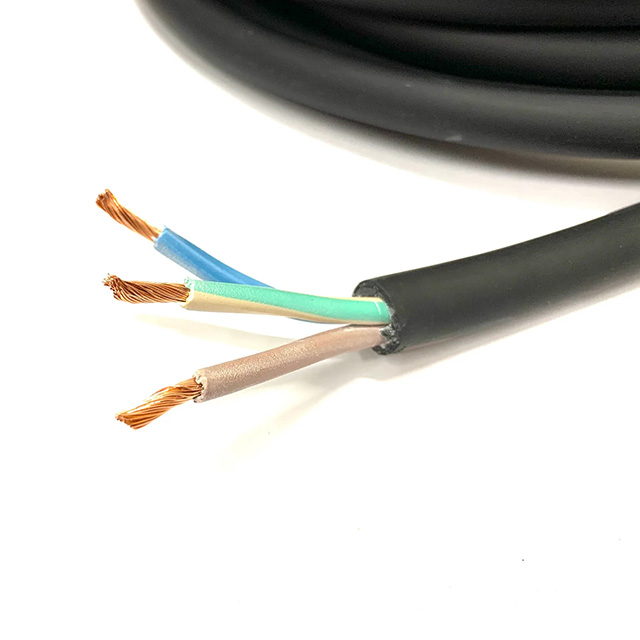

H05RN-F Rubber Sheathed Flexible Cable
Application
H05RN-F cable is a light use flexible rubber insulated Neoprene jacketed electrical cable commonly used in kitchen and catering equipment, appliances, refrigerators, power tools, computers, medical devices, heaters, mobile homes, and any other medium duty electrical or electronic equipment designed for use outside the USA. It is safe to use at much lower temperatures than a PVC cable, being rated to operate at temperatures as low as -25 degrees Celsius. H05RN-F cable is rated at a maximum of 60°C and must not be permitted to come into direct contact with any high temperature surface or component.
Constrution
Characteristics
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 7.5 x Ø |
| Fixed bending radius | 4.0 x Ø |
| Temperature Range | -30º C to +60º C |
| Short circuit temperature | +200 º C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
Parameters
|
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
|
mm2 |
mm |
mm |
mm min-max |
kg/Km |
kg/Km |
|
2 x 0.75 |
0.6 |
0.8 |
5.7 - 7.4 |
14.4 |
80 |
|
3 x 0.75 |
0.6 |
0.9 |
6.2 - 8.1 |
21.6 |
95 |
|
4 x 0.75 |
0.6 |
0.9 |
6.8 - 8.8 |
30 |
105 |
|
2 x 1 |
0.6 |
0.9 |
6.1 - 8.0 |
19 |
95 |
|
3 x 1 |
0.6 |
0.9 |
6.5 - 8.5 |
29 |
115 |
|
4 x 1 |
0.6 |
0.9 |
7.1 – 9.2 |
38 |
142 |
|
3 x 1.5 |
0.8 |
1 |
8.6 - 11.0 |
29 |
105 |
|
4 x 1.5 |
0.8 |
1.1 |
9.5 - 12.2 |
39 |
129 |
|
5 x 1.5 |
0.8 |
1.1 |
10.5 - 13.5 |
48 |
153 |
