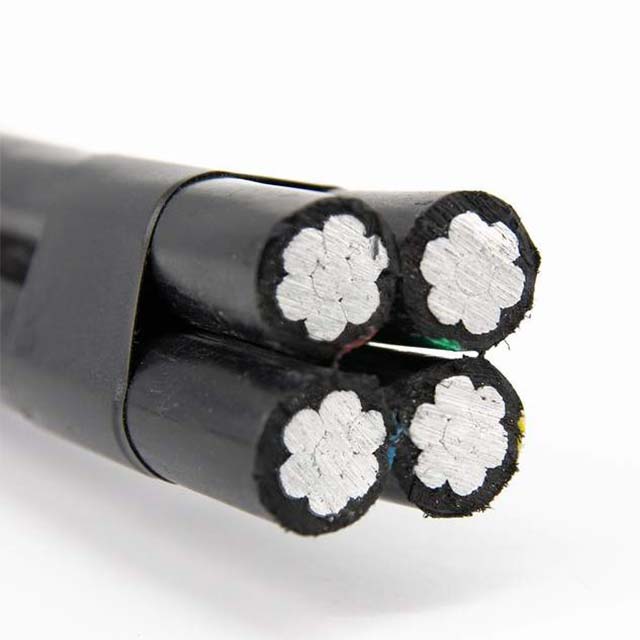

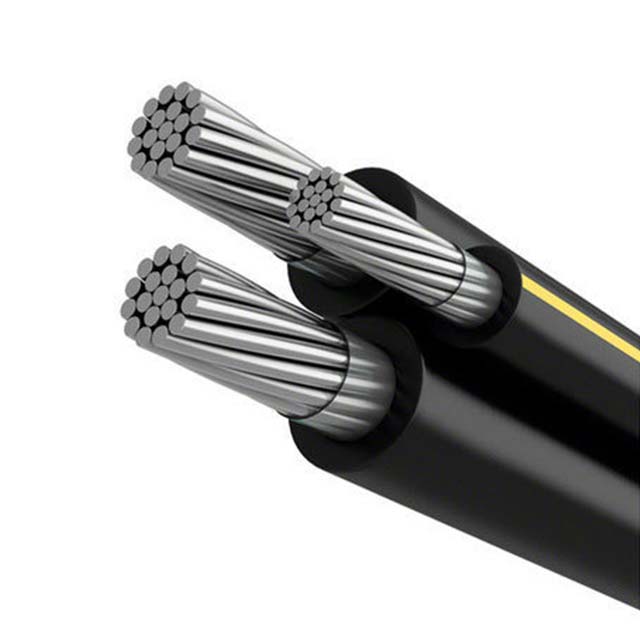

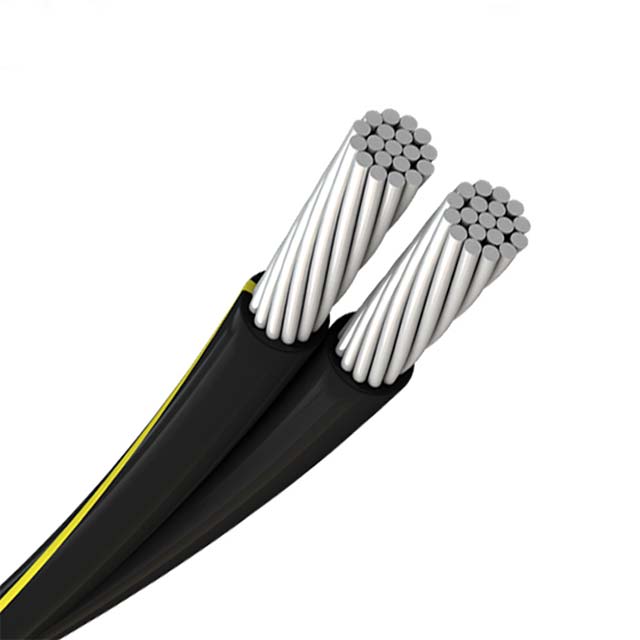

0.6/1kv ABC-Aerial Bundled Cable GB/T 12527
Application
1.Power transmission
The power generated by the power plant is transmitted to the substations in various cities and regions through overhead insulated wires.
2.Power distribution
Converting high-voltage electrical energy in substations to low-voltage electrical energy and delivering it to places such as homes, commercial buildings, and industrial facilities for human consumption.
3.Power supply to electric railways
Overhead insulated wires are often used to supply power to electrified railways such as trams and subways.
Constrution
1.Phase Conductor
Circular stranded, rounded, compacted aluminum conductor
2.Neutral(Messenger) Conductor
Aluminum Conductor (AAC) or All Aluminum Alloy Conductor (AAAC)
3. Insulation
Black color Polyethylene (PE) or Cross-linked polyethylene (XLPE)
Characteristics
Rated voltage:
0.6/1kv
Mechanical performance
Minimum bending radius: x10 cable diameter
Therminal performance
Maximum service temperature: 90°C
Maximum short-circuit temperature: 250°C(max.5s)
Minimum service temperature: -40°C
Standard:
GB/T 12527
Parameters
|
Nominal cross-section |
Apporx.dia. of conductor |
Apporx.outer dia. of cable |
Approx. weight |
Min. breaking load |
Max. DC resistance at 20℃ |
Current rating in air at 40℃ |
|
mm2 |
mm |
mm |
kg/km |
kN |
Ohm/km |
A |
|
10 |
3.8 |
5.9 |
104 |
3.47 |
1.906 |
58 |
|
16 |
4.8 |
7.3 |
160 |
5.49 |
1.198 |
78 |
|
25 |
6.01 |
8.5 |
243 |
8.47 |
0.749 |
105 |
|
35 |
7.06 |
9.9 |
338 |
11.73 |
0.540 |
125 |
|
50 |
8.18 |
11.1 |
451 |
16.50 |
0.399 |
155 |
|
70 |
9.88 |
12.8 |
643 |
23.46 |
0.276 |
195 |
|
95 |
11.6 |
14.9 |
882 |
31.76 |
0.199 |
240 |
|
120 |
13.09 |
16.4 |
1110 |
39.91 |
0.158 |
280 |
|
150 |
14.3 |
18 |
1369 |
49.51 |
0.128 |
320 |
|
185 |
16.2 |
20.3 |
1713 |
61.85 |
0.1021 |
370 |
|
240 |
18.61 |
23.1 |
2272 |
79.82 |
0.0777 |
440 |
