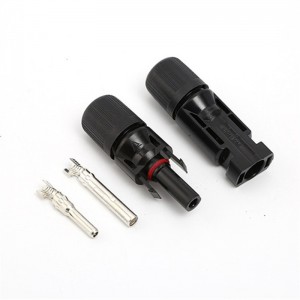

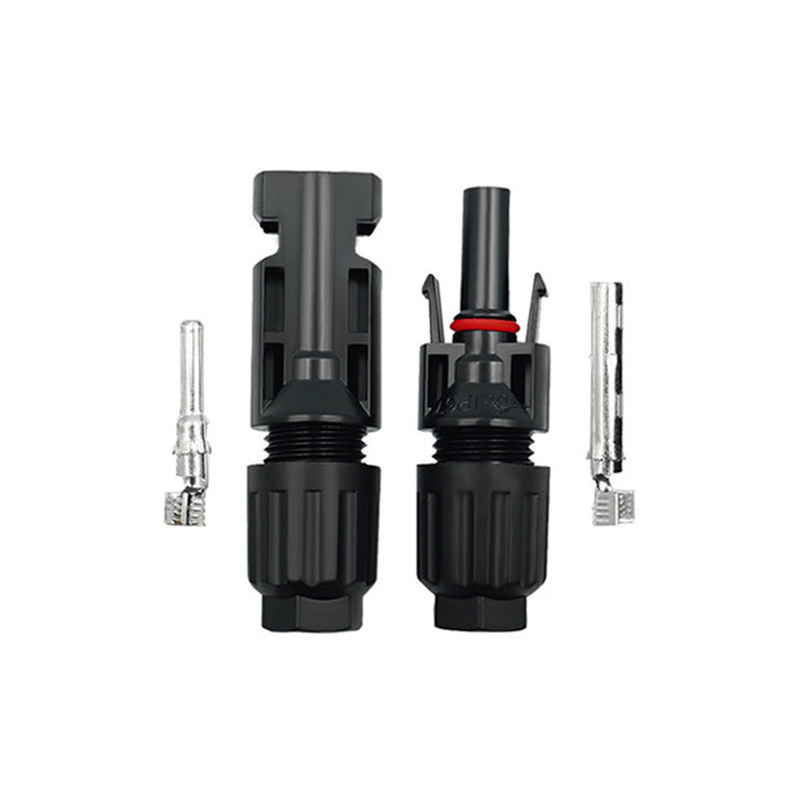

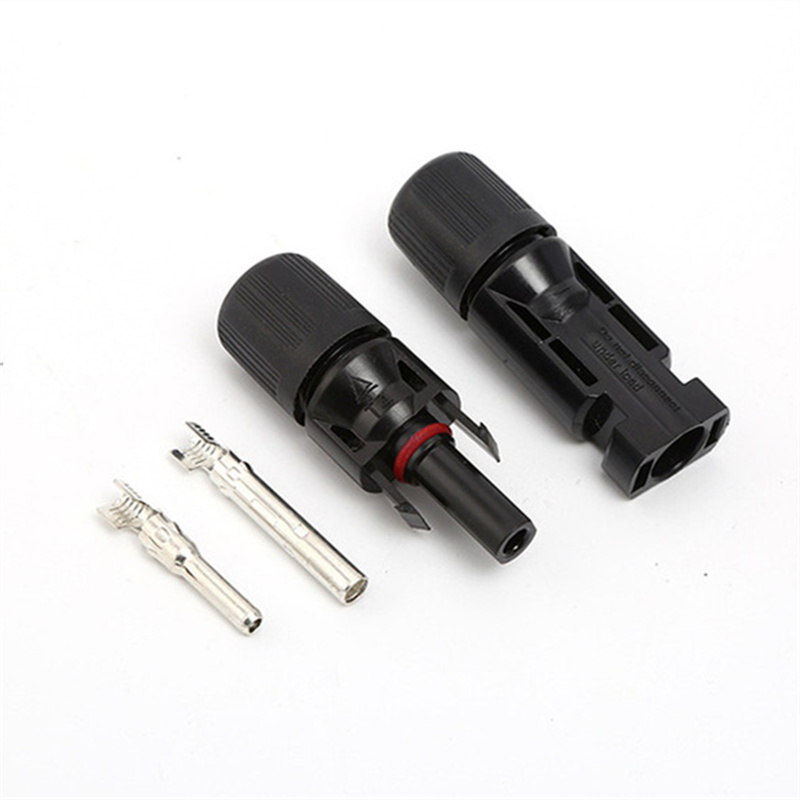

1500V MC4 Connector Male And Female Solar Connector

Short Description:

1 pair solar panel cable connectors (1pcs Male and 1pcs Female). Compatible with PV cables with different solar cable (2.5mm–6mm). PPO/PPE insulation material With excellent aging resistance and UV resistance.It can be used in the outdoor environment. High current and voltage carrying capacity. Simple, quick and safe effective assembly.

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Payment: T/T, L/C, PayPal

Stock Sample is Free & Available

Send email to us

Product Detail

Product Tags

Application

The main function is to achieve quick connection between junction boxes, combiner boxes, components and inverters.

solar connectors are key parts for interconnecting components, combiner boxes,controllers, and inverters in a photovoltaic power generation system. In a photovoltaic power plant, to gather the electrical energy of a large number of components together and enter the inverter, it is necessary to rely on cables and connectors.

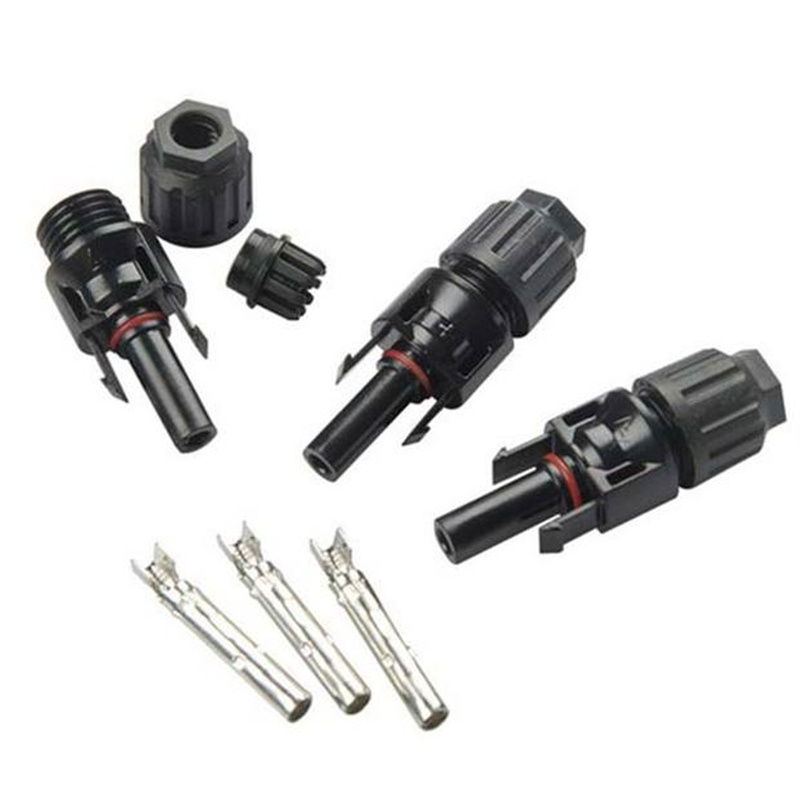

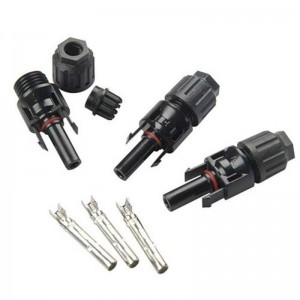

Constrution

Characteristics

1:IP67 Water Proof IP Rating
2: Easy to assemble,Simple on-site processing.
3:100% new PPO Material
4:Insulation Component
5:Copper material ,Tinned appearance
6:Low resistance ,corrosion resistance
7:Ce and CCC certification
8.High current carrying capacity.

Our Advantages

1. Efficient and Innovative sample service, GB/T19001-ISO9001 quality assurance system.
2. Professional online service team, any mail or message will reply within 24 hours.

Parameters

Rated current	17A (1.5mm)、22.5A (2.5mm) 、30A (4mm,6mm) 、40A (10mm)
Rated vollage	1000V AC 1500V DC
Size	2.5-6mm2
Test vollage	6000V(50Hz,1min)
Insulation material	PPO
Overvollage type/pollution degree	CAT I 12
Contact resistant of plug connector	1mQ
Contact material	Copper,Tin-plated
Degree of protection	IP2X/IP67
Flame class	UL94-VO
Safety class	II
Suitable cable	OD 4.5-6.5(2.5-6.0 mm2)
Insertion force/withdrawal force	Crimp connection
Connecting system	S50N/250N
Temperature range	-40°C~+90C

FAQ

Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: What’s the payment terms?
A: 30% T/T deposit, 70% T/T balance payment before shipment.
Q: How does your factory do regarding quality control?
A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.

Contact us for more informations about our products, our professional team will serve you and customized according to your requirements.
