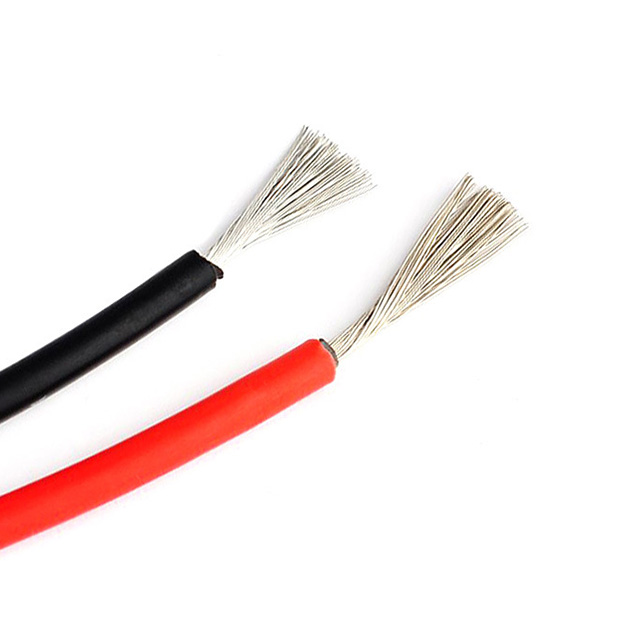

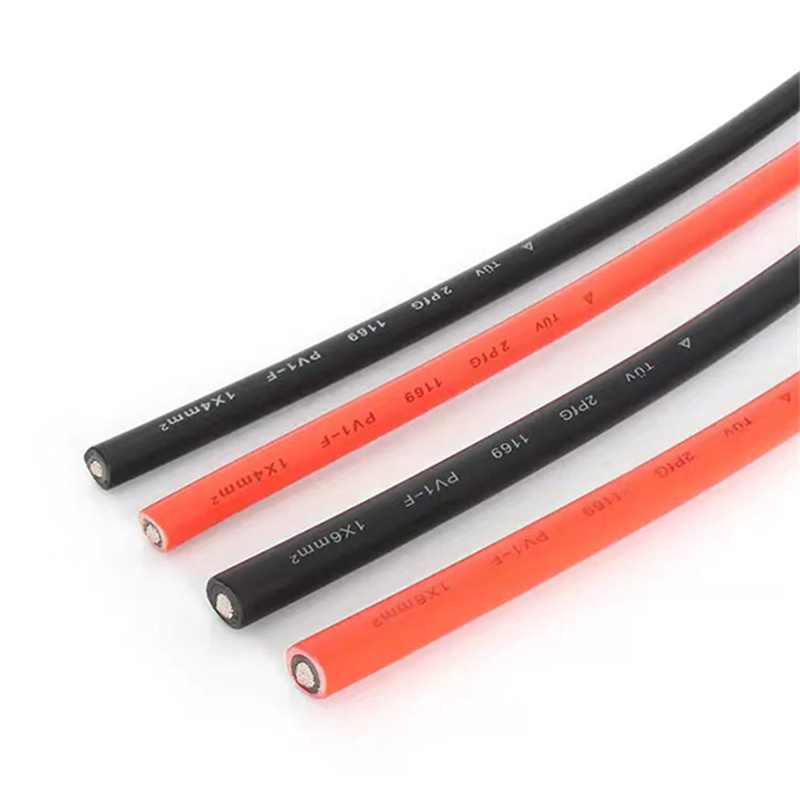

TUV Approved Pv1-f Solar Cable
Application
The Solar Cable are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
Constrution
Characteristics
| Rated voltage U0/U | 0.6/1 kV AC; 0.9/1.5 kV DC |
| Conductor | Stranded tinned copper wire conforming to DIN VDE 0295 and IEC 60228 Class 5 |
| Insulation | Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin |
| Sheath | Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin |
| Insulation nominal thickness | 0.8mm |
| Nominal thickness of sheath | 0.9mm |
| Nominal cross section | 4mm2 |
| Outer diameter of finished wire | 6.1±0.1mm |
Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502
Parameters
|
No. Of cores x Construction （mm2） |
Conductor Construction （n / mm） |
Conductor No./mm |
Insulation Thickness (mm) |
Current Aarring Capacity (A) |
|
1×1.5 |
30/0.25 |
1.58 |
4.9 |
30 |
|
1×2.5 |
50/0.256 |
2.06 |
5.45 |
41 |
|
1×4.0 |
56/0.3 |
2.58 |
6.15 |
55 |
|
1×6 |
84/0.3 |
3.15 |
7.15 |
70 |
|
1×10 |
142/0.3 |
4 |
9.05 |
98 |
|
1×16 |
228/0.3 |
5.7 |
10.2 |
132 |
|
1×25 |
361/0.3 |
6.8 |
12 |
176 |
|
1×35 |
494/0.3 |
8.8 |
13.8 |
218 |
|
1×50 |
418/0.39 |
10 |
16 |
280 |
|
1×70 |
589/0.39 |
11.8 |
18.4 |
350 |
|
1×95 |
798/0.39 |
13.8 |
21.3 |
410 |
FAQ
Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: What’s the payment terms?
A: 30% T/T deposit, 70% T/T balance payment before shipment.
Q: How does your factory do regarding quality control?
A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.
