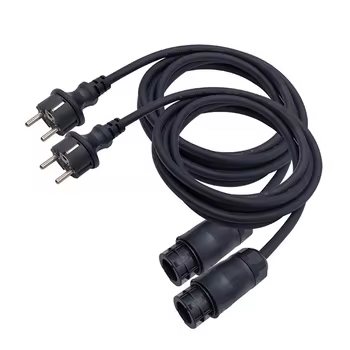

3m 5m 10m Betteri BC01 Female Cable to Schuko

Short Description:

Mains connection cable, for AC connection of the mirco inverter to a Schuko socket. Cable Diameter: 10mm. On one side with mounted Betteri BC01 (female) power connection socket, the other side with Schuko plug. The H07RN-F 3 x 1.5 mm² rubber cable is approved according to VDE 0282 for use under heavy use, in dry and damp rooms as well as outdoors and in use water from -30°C to 60°C. Suitable for single-phase micro inverters with Betteri connector, compatible with Hoymiles or Envertech.



Email: sales@zhongweicables.com

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Payment: T/T, L/C, PayPal

Stock Sample is Free & Available

Product Detail

Product Tags

Application

Betteri BC01 PV 3 Pin AC Connector to EU Schuko Plug Mains Connection Cable for AC connection of the micro inverter to a Schuko connector.They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C.

Constrution

Specification

BC01 Female cable to Schuko Plug
Cable section  3G1.5 or 3G2.5
Cable code  H07RN-F, Rubber wire
Cable Certificate  TUV approval
BC01 Plug  TUV and IP68
Schuko Plug  IP44
Customized length  2m/3m/5m/10m/15m etc.

Parameters

Number of electrode cores 2P+PE
Rated current 25A (using 4.0mm² or 12AWG wire)
Rated voltage CSA:250/350V AC； TUV:250V AC
contact resistance ≤1mΩ
Power frequency and pressure resistance 4000V AC
Overvoltage type III
Fire retardant grade UL94-V0
Insert pull out force 10~50N (without latches)
Applicable wire specifications 2.5/4.0mm² or 14 / 12AWG
Suitable for cable external economy 10～13mm
Mode of connection Screw press
Sheathing material PPO
Terminal material copper-zinc alloy
Terminal surface processing Tin / Silver plated
Seal material silastic；silicon rubber

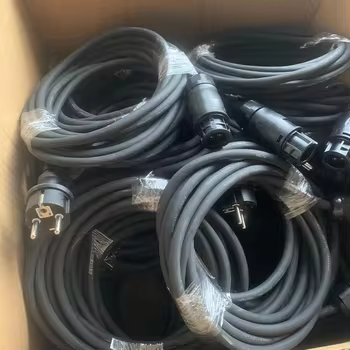

Packing & Shipping

FAQ

Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: What’s the payment terms?
A: 30% T/T deposit, 70% T/T balance payment before shipment.
Q: How does your factory do regarding quality control?
A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.

Contact us for more informations about our products, our professional team will serve you and customized according to your requirements.
