As the core solution for antifreeze and heat preservation of industrial pipelines and storage tanks, the selection and installation rigor of electric heating systems directly affect the system’s efficiency and safety. Among many usage issues, “whether electric heating cables can be cut at will” seems to be an operational detail, but in fact it is related to the success or failure of the entire system.
Not all electric heating cables can be “cut”: the core type determines the cutability
The cutting ability of electric heating cables is determined by their internal structure and working principle, and is mainly divided into two categories:
Safe cutting type:

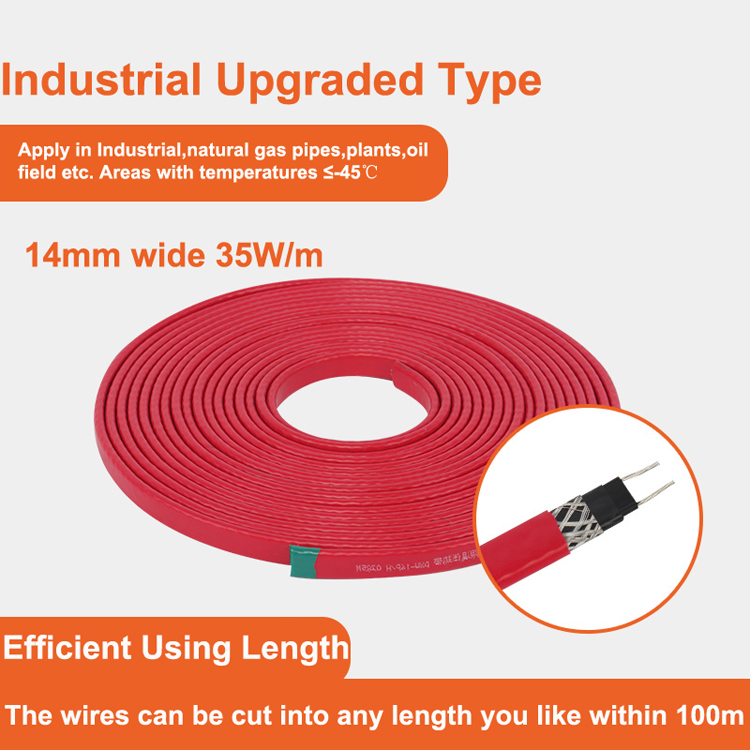

Self-controlling temperature heating cables: This is the most prominent representative. Its core lies in the use of conductive polymers with positive temperature coefficient (PTC) effect as heating materials. The characteristic of this material is that the resistance increases with temperature, thereby automatically adjusting the output power. Its parallel circuit structure allows the remaining part to form a complete circuit independently after cutting at any point, maintaining normal operation, and the power output automatically adapts to the length requirements after cutting. This is one of its core advantages.
Constant power parallel type electric heating cable: Its structural feature is that two parallel insulated busbars (conductors) run through the entire length of the belt. Between the two busbars, many independent heating resistor wires (heating nodes) are regularly connected in parallel. Each heating node forms an independent parallel circuit with the busbar. Cutting at the blank points between the heating nodes will not destroy any complete heating circuit. After cutting, the total power of the remaining part is reduced proportionally, but it can still work normally.
Common types that are strictly prohibited from cutting:
Constant power series type electric heating cable: Its structure is that a high-resistance alloy wire (heating core) is connected in series throughout the entire length of the belt. This alloy wire itself is a single continuous heating element. Cutting means cutting off this only current path, the entire circuit is destroyed, and the remaining part is completely ineffective. Even if you try to reconnect, the connection point will become a high-resistance, overheating-prone fault point, which is extremely dangerous.
MI armored heating cable: It consists of a metal sheath, tightly compacted magnesium oxide insulation powder and a single or multiple alloy heating cores. Its structure dictates that it is a rigid, sealed, integrated unit. Any arbitrary cutting will not only compromise its structural integrity, sealing, and insulation, but will also directly sever the heating core, rendering the entire cable useless and potentially causing serious accidents such as short circuits and electrical leakage.
“One-Size-Fits-All” Approach Regardless of Type: Catastrophic Consequences
Forced cutting of electric heating cables regardless of their type will lead to a series of serious consequences:
Complete System Failure:
For example, in the case of series-type or MI-armored cables, the section after the cut point will completely lose its heating function, resulting in cold spots or even widespread freezing in the heated area, rendering it useless for frost protection and insulation.
Overheating and Fire Risk:
Attempting to force a connection at the cut point of a series-type cable, or improperly cutting a parallel-type or self-controlled temperature cable at the wrong location (e.g., at a heating node rather than between nodes) and then handling it improperly, will create a high-resistance area at the connection point. According to Joule’s Law (Q = I²Rt), the current flowing through this area will generate abnormally high temperatures, potentially burning the insulation layer or the heating cable itself, or even igniting surrounding insulation materials or combustibles, causing a fire.
Electrical Safety Hazards
Cutting damage to the insulation or metal sheath can easily expose the conductor, leading to short circuits and ground leakage current, resulting in tripping and equipment damage, posing a serious threat to operator safety (risk of electric shock).
Abnormal Performance and Increased Energy Consumption
Even with cuttable cables, failure to cut at designated points or improper end treatment (such as failure to use specialized end caps) can lead to localized overheating, abnormal power, excessive starting current, or increased energy consumption.
Warranty Voiding and Difficulty in Accountability
The manufacturer will not cover damage caused by non-standard operation (including incorrect cutting), increasing subsequent maintenance costs.
Advantages of Cuttable Cables: Flexibility and Efficiency
The cuttable nature of automatic temperature-controlled and constant power parallel heating cables offers significant advantages:
Significantly Enhanced Installation Flexibility:
They can be tailored to the complex shapes and precise length requirements of on-site pipes, valves, flanges, pumps, instruments, and other equipment, ensuring a tight fit and avoiding waste or insufficient length.
Reduce the number of joints and failure points
In theory, a single heating cable can meet the needs of complex paths, reducing the use of intermediate joints. Joints are the weakest link in the heating system. Reducing joints means reducing the risk of potential failures and moisture intrusion.
Save materials and costs
Avoid the situation where multiple short strips must be spliced or a large number of long strips are redundant due to length mismatch, effectively reducing material costs.
Simplify design, storage and construction
There is no need to strictly require a perfect length match when designing and selecting, which makes inventory management simpler (several standard lengths can be prepared), and on-site construction adjustments are faster and more convenient.
Cutting is not universal: understand its limitations
Although flexible cutting is good, it also needs to follow strict rules and understand its inherent limitations:
There are strict requirements for cutting points:
Constant power parallel type: Cutting must be strictly done at the blank nodes (marked points or specific positions) between the heating nodes. Cutting on the heating node will damage the heating unit.
Self-regulating temperature type: In theory, it can be cut at any point (this is one of its biggest advantages), but in actual operation, in order to facilitate installation and ensure the end sealing effect, it is also recommended to operate near the interval points recommended by the manufacturer.
End treatment is crucial
Regardless of the type of cuttable, the exposed conductor end after cutting must be thoroughly waterproofed, moisture-proofed and insulated using the special heat shrink sealing joint (also known as the terminal head) provided by the manufacturer. Improper treatment is the main cause of water ingress short circuit and failure.
Power/length relationship:
Constant power parallel type: After cutting, the total power is reduced in proportion to the length, and it is necessary to recalculate whether it meets the heat loss requirements of the pipeline section.
Self-regulating temperature type: Although the power can be adaptive, its maximum usable length is limited by the starting current and the circuit voltage drop. Excessive extension of the length of a single belt may cause difficulty in starting at the remote end or insufficient power. After cutting and shortening, its maximum allowable length limit still exists (usually shorter than the original belt).
Impact of Multiple Cutting
Frequent or improper cutting operations may increase the number of end-of-line processing points, theoretically slightly increasing the risk of failure. Furthermore, after repeated cutting of self-regulating temperature heating cables, the minimum installation length of the remaining portion should be carefully considered.
Cutting electric heating cables is by no means a simple, arbitrary operation. A thorough understanding of the structural principles of different heating cable types, strict differentiation between the cutability of “self-regulating temperature” and “constant watt parallel” cables, and the absolute prohibition of cutting “constant watt series” and “MI armored cables” are crucial for ensuring the safe, efficient, and long-term stable operation of electric heating systems.
This cutability provides self-regulating temperature and parallel constant watt heating cables with unparalleled installation flexibility, greatly enhancing their adaptability to complex operating conditions.
However, this flexibility must be based on strict adherence to cutting rules, precise end-of-line sealing, and a clear understanding of their power-to-length relationship and inherent limitations.
Only by prioritizing technical specifications over operational requirements can we avoid the safety hazards and performance losses associated with a “one-size-fits-all” approach and ensure that electric heat tracing truly becomes a reliable partner for ensuring production continuity and safe equipment operation. In the complex environment of industrial applications, a clear understanding of the boundaries of technology is often more important than the technology itself.
